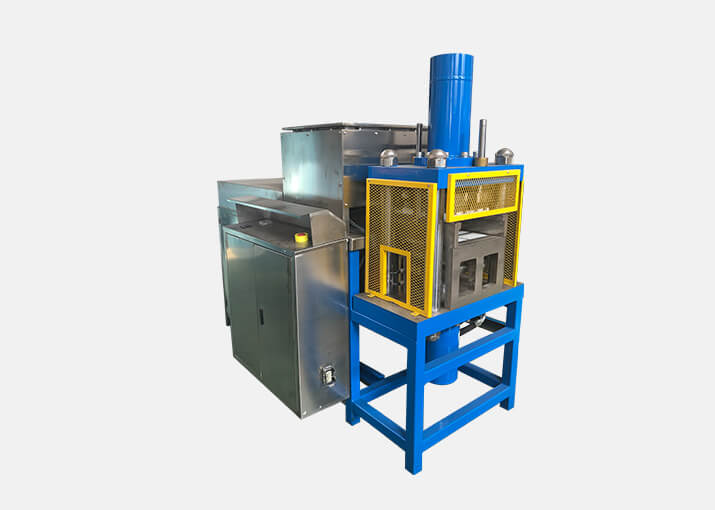

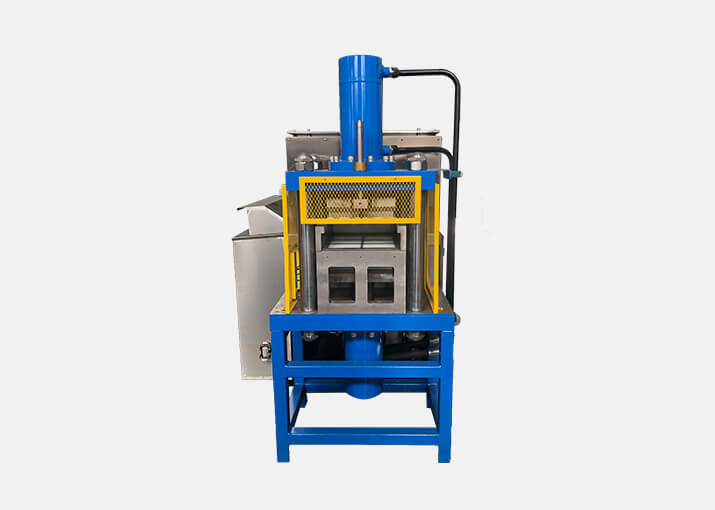

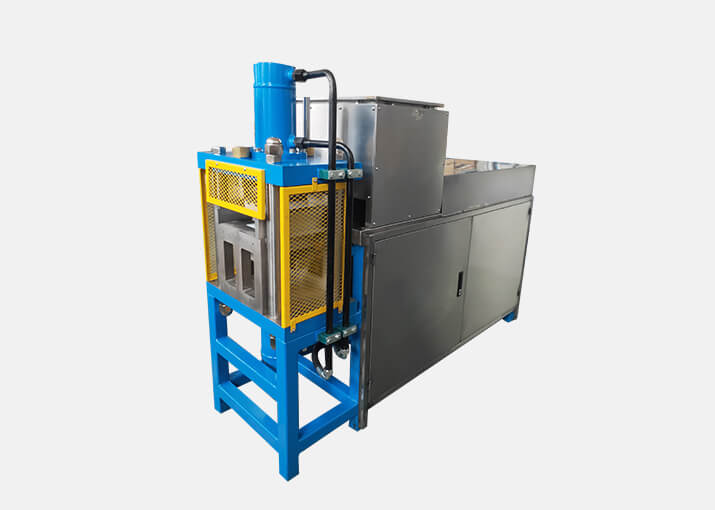

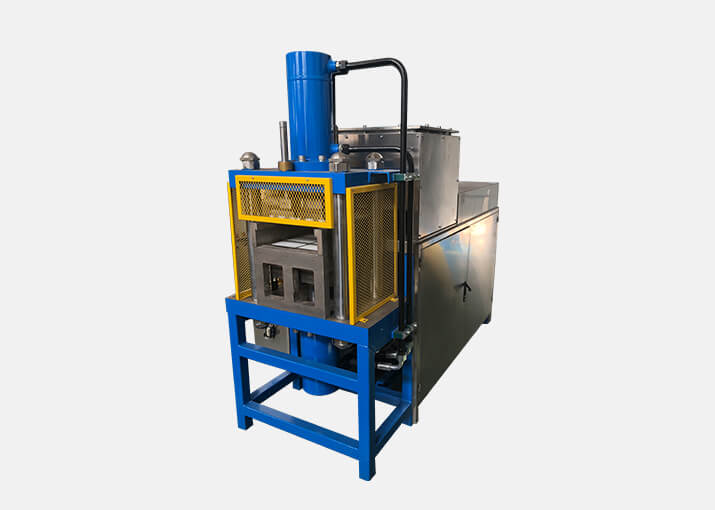

Dry Ice Reformer JHR4000
Our standard dry ice reformer machine JHR4000 is designed to optimise the production of dense dry ice blocks in various sizes by compressing dry ice pellets. Be it in combination with an exisiting or with a new dry ice pelletizer, JHR4000 will be a very convenient tool to complement the dry ice pellet business with dry ice blocks.
Unique Features
-
PLC - automatically controls the complete process, injection, hydraulic and press
-
Independent performance - very constant production, independent of pressure and temperature
-
Integrated production control system - definition and supervision of production quantity
-
High process reliability - optimized process monitoring provides optimal performance and increases process reliability
-
Easy maintenance - simple structure and easy replacement of spare parts makes maintenance work simple for even new users
-
Minimum floor space for high production performance
Specifications
|
Dry ice size and Production capacity |
6-125×105×（10-60）mm, production capacity: 1000kg/hr |
|
Dry ice density |
≧1.50t/m³ |
|
Raw materials |
Φ3 mm |
|
Conversion rate |
≧98% |
|
Motor Power |
11kw |
|
Oil Tank |
250L |
|
Power supply |
380v/50Hz, 3p |
|
Overall dimension |
2150*1400*1800mm |
|
Weight |
2000kg |
