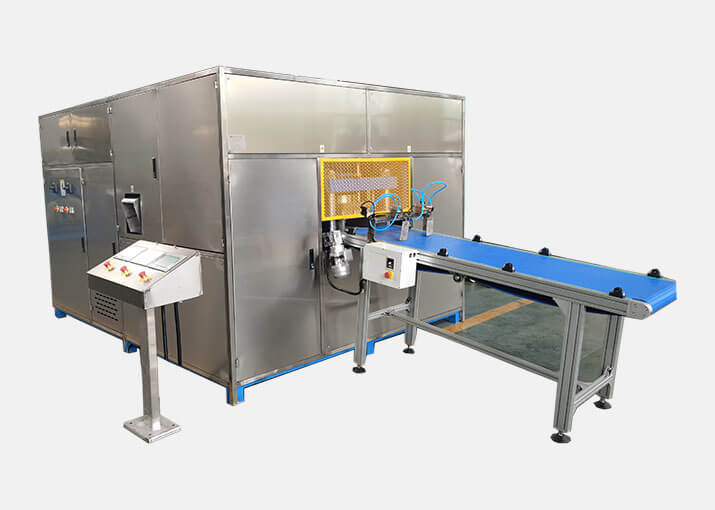

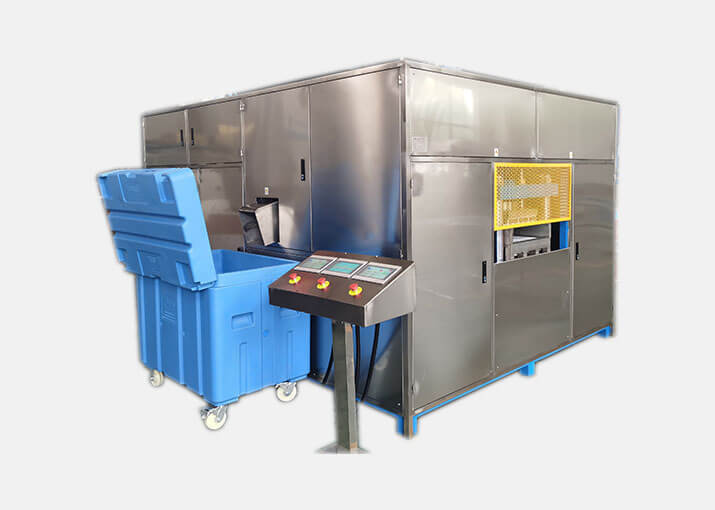

Dry Ice Machine JHK2000P
Our automatic Dry Ice Machine JHK2000P produces slices with capacity of 2000kgs/hr. Standard slice dimensions are 125 x 105 x 20 - 60 mm . Other slice dimensions are available on request. Depending on the setting,the slice ice thickness is adjustable.
The dry ice slices are normally used for food transportation. In China, they are used frequently online fresh store business. It is also possible to produce other thicknesses up to 60 mm. Other block ice dimensions are available on request.
This production line is most suitably for dry ice manufacturing plant which needs high density dry ice slices in higher production efficiency.
Unique Features
-
PLC - automatically controls the complete process, injection, hydraulic and press
-
Independent performance - very constant production, independent of pressure and temperature
-
Integrated production control system - definition and supervision of production quantity
-
High process reliability - optimized process monitoring provides optimal performance and increases process reliability
-
Easy maintenance - simple structure and easy replacement of spare parts makes maintenance work simple for even new users
-
Minimum floor space for high production performance
Specifications
| Dry ice size: | pellet Ф3mm, block 125mm×105mm×(20-60)mm |
| Production capacity: | 2000kgs/hr |
| Dry ice density: | 1.5 g/cm³ |
| Raw materials: | liquid co2 in storage tank, water content is less than 30ppm |
| Conversion rate: | 43% |
| Motor Power: | 55 kw |
| Oil tank: | 700 liters |
| Power supply: | 380V/3P/50Hz |
| LCO2 inlet pressure: | ≤2.2 Mpa |
| LCO2 inlet pipe: | 2×DN25mm |
| CO2 gas discharge pipe: | 4×DN80mm, 2 outlets |
| Overall dimension: | 3300×2650×2150mm |
| Weight: | 7000kg |
