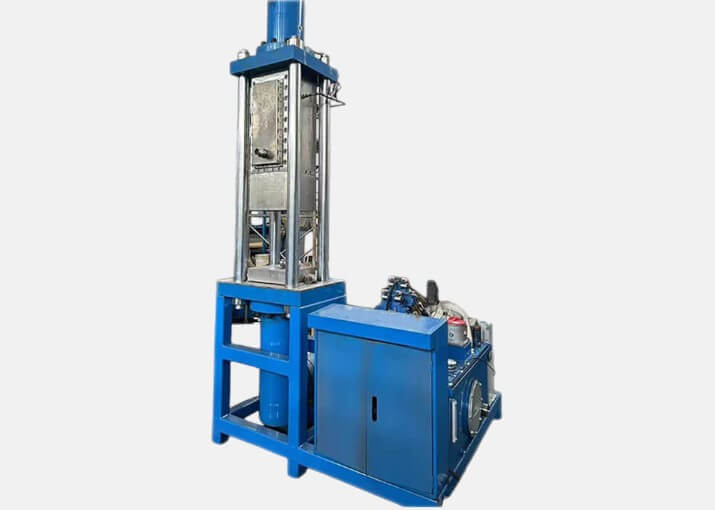

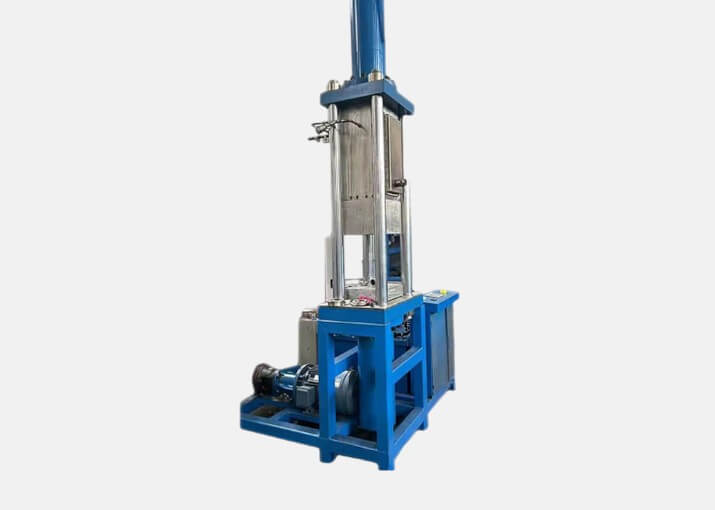

Dry Ice Block Machine JHK650V
Our standard dry ice block press machine JHK650V is producing a dry ice block with a dimension of 300 x 300 x (50-260) mm which normal weighs 3kg-30kg. The ice blocks are mainly applied in cold chain, refrigeration storage, and dry ice cleaning industry (deburring). Other block ice dimensions are available on request.
Unique Features
-
PLC - automatically controls the complete process, injection and hydraulic
-
Independent performance - very constant production, independent of pressure and temperature
-
Integrated production control system - definition and supervision of production quantity
-
High process reliability - optimized process monitoring provides optimal performance and increases process reliability
-
Easy maintenance - simple structure and easy replacement of spare parts makes maintenance work simple for even new users
-
Minimum floor space for high production performance
Specifications
|
Dry ice size |
300*300*(50-260)mm |
|
Production capacity |
750-950 kgs/hr |
|
Dry ice density |
1.3 to 1.52 g/cm³ |
|
Raw materials |
liquid co2 in storage tank, water content is less than 30 ppm |
|
Conversion rate |
42% |
|
Motor Power |
11 kw |
|
Oil Tank |
320L |
|
Power supply |
380V/50Hz, 3P |
|
Liquid co2 inlet pressure |
≤2.1MPA |
|
Liquid co2 inlet pipe |
Ф25 |
|
Exhaust pipe diameter |
2*Ф65 |
|
Overall dimension |
800*1500*4200mm |
|
Weight |
4600kg |
