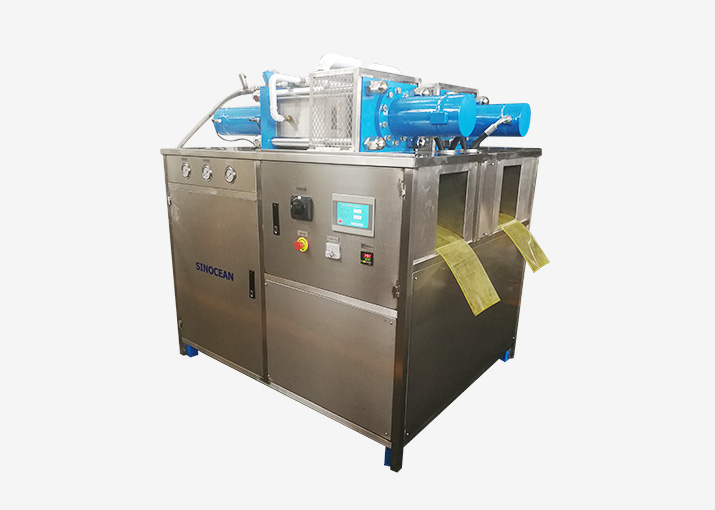

Dry Ice Block Machine JHK200

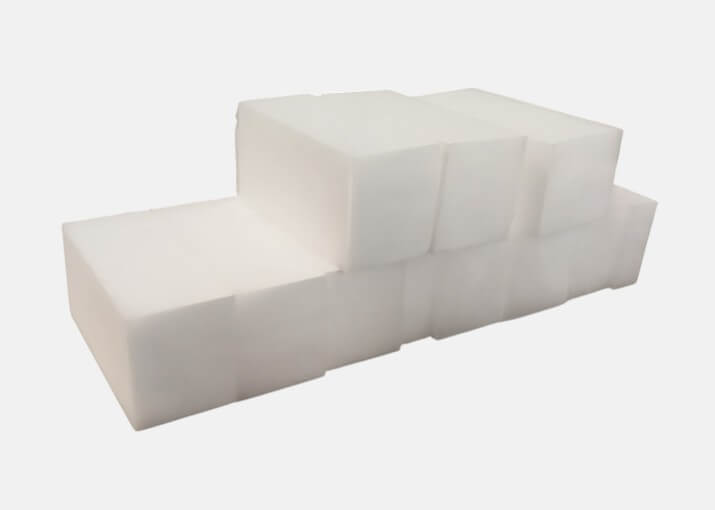

Our standard dry ice block machine JHK200 is producing a dry ice slice with a dimension of 125 x 105 x 25 mm which is normally used for airline catering. It is also possible to produce other thicknesses up to 60 mm by manual adjustment of the snow injection time. Other slice dimensions are available on request.
Unique Features
-
PLC - automatically controls the complete process, injection and hydraulic
-
Independent performance - very constant production, independent of pressure and temperature
-
Integrated production control system - definition and supervision of production quantity
-
High process reliability - optimized process monitoring provides optimal performance and increases process reliability
-
Easy maintenance - simple structure and easy replacement of spare parts makes maintenance work simple for even new users
-
Minimum floor space for high production performance
Specifications
| Dry ice size: | 125*105*(20-60)mm |
| Production capacity: | 240-370kgs/hr |
| Dry ice density: | ≥1.48 g/cm³ |
| Raw materials: | liquid co2 in storage tank, water content is less than 30 ppm |
| Conversion rate: | 42% |
| Motor Power: | 15kw |
| Oil Tank: | 280L |
| Power supply: | 380v/50Hz, 3p |
| Liquid co2 inlet pressure: | ≤2.1MPA |
| Liquid co2 inlet pipe: | 2*Ф10 |
| Co2 gas discharge pipe: | 2*Ф50 |
| Overall dimension: | 1600*1400*1700mm |
| Weight: | 1600kg |
