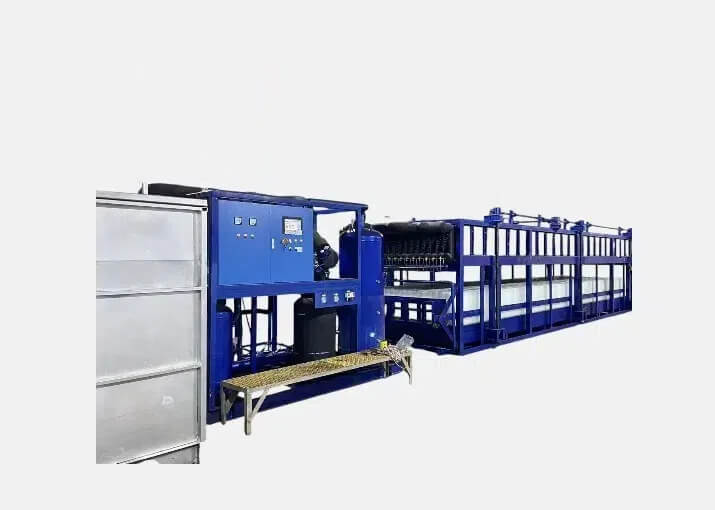

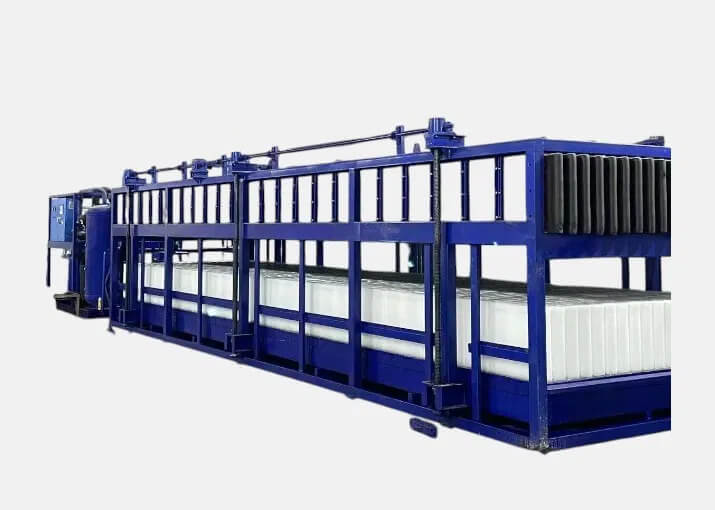

Direct Cooling Block Ice Machine SNB-300
SINOCEAN Direct Cooling Block Ice Machine SNB-300 is a high-efficiency block ice making machine that produces ice faster than traditional systems. With advanced features like aluminum alloy evaporator and automated functions, it's perfect for large-scale production.
Key Features
-
Latest Technology, No Saltwater Tank Required: Simplifies system design and operation, eliminating the need for a saltwater tank.
-
Aerospace-Grade Aluminum Alloy (6063-T5): High heat transfer, strength, and durable evaporator with advanced welding.
-
Direct Heat Exchange: Direct heat exchange in aluminum evaporator boosts ice-making efficiency, producing ice 1.5x faster.
-
Screw Rod Lifting Mechanism: Screw rod lifting with sensor feedback for precise, safe, smooth operation.
-
Passive Reservoir Control: Ensures precise liquid supply, increasing ice-making efficiency and overall system reliability.
-
Automatic Water Addition Function: Back-type liquid level control technology automatically adds water, ensuring consistent operation.
-
Silicone Foam Seal: Prevents evaporator leakage, ensuring efficient and clean ice production.
-
Unique Ice Making System: Hot gas defrost technology simplifies automatic ice harvesting for reliability and convenience.
-
Integrated Modular Design: Facilitates easy installation and maintenance on-site for greater convenience.
Specifications
|
Daily capacity |
30Ton/24hr |
|
Power supply |
380V/50Hz/3P |
|
Block ice size |
300mm*125mm*800mm |
|
Block ice weight |
25kg |
|
ice making design |
25kg*403pcs*3times=30225kg |
|
Cooling way |
Evaporative cooling |
|
Refrigerant |
R22 |
|
Average power |
97KW |
|
Install Power |
130KW |
|

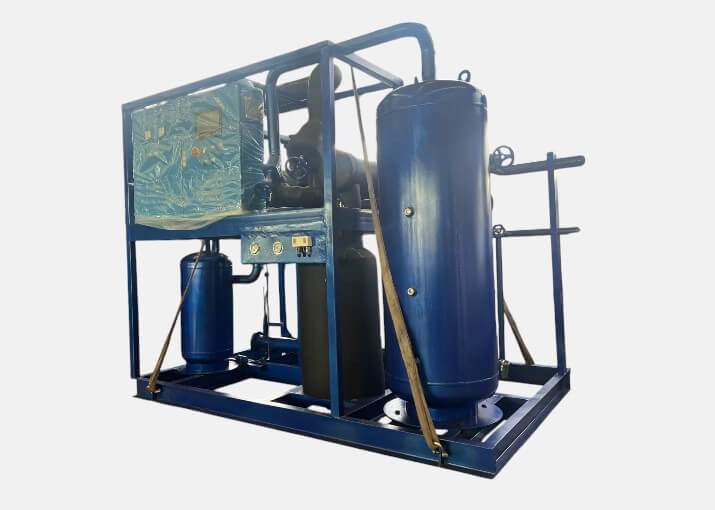

Compressor unit dimension |
2700*2000*2550mm |
|

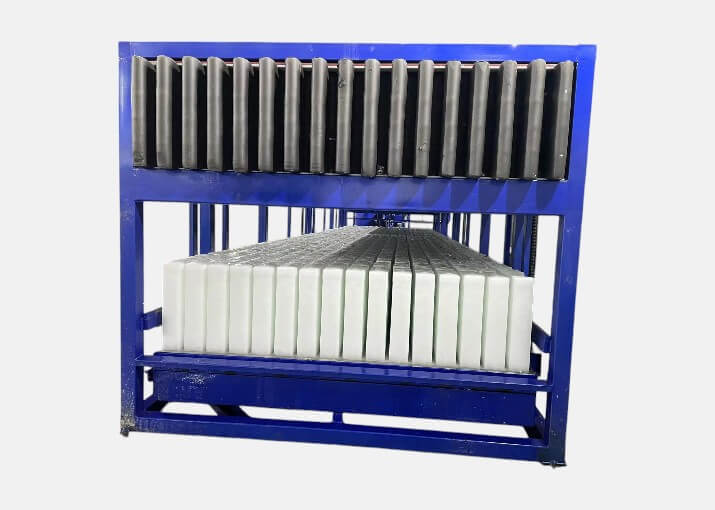

Evaporator unit dimension |
11500*2600*2550mm |
