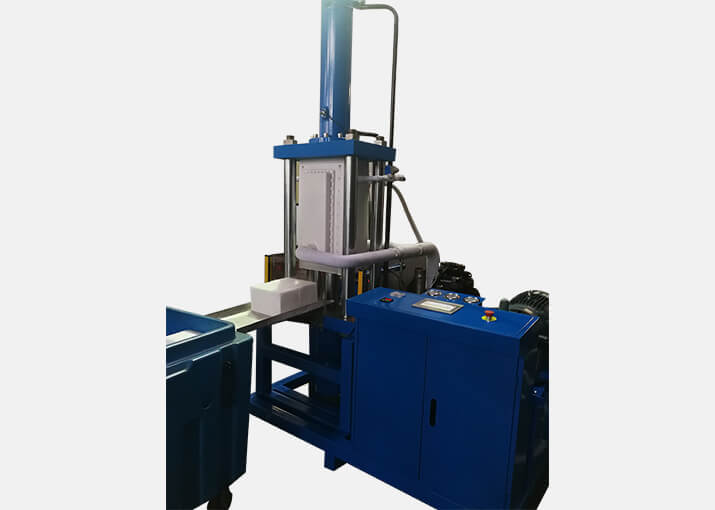

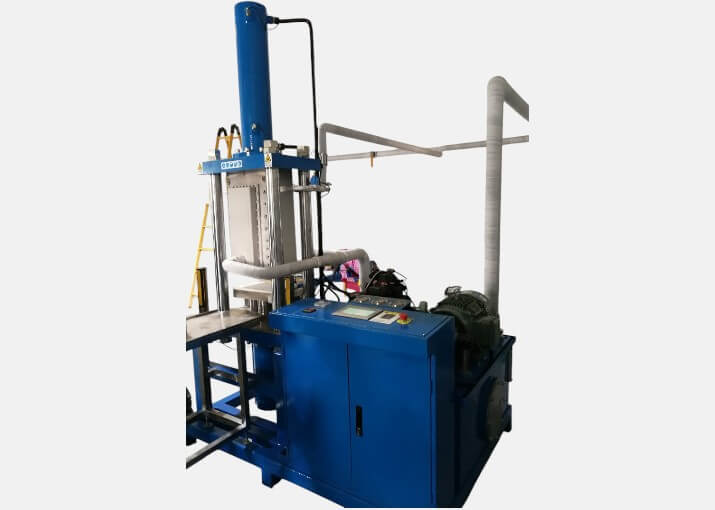

Dry Ice Block Machine JHK500V

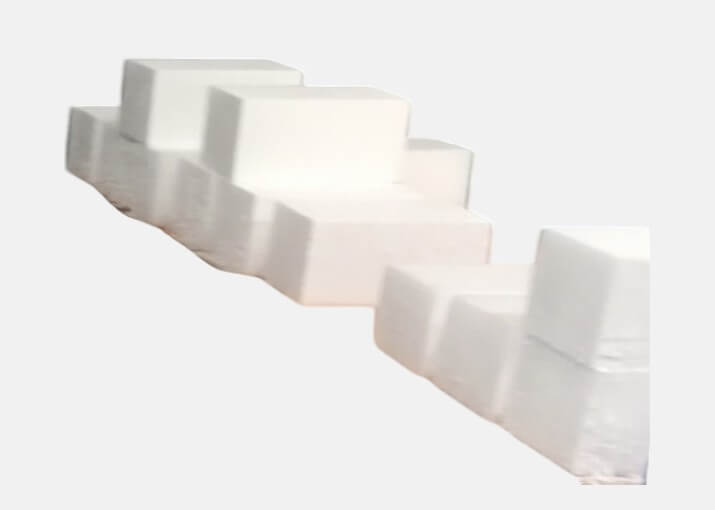

Our standard dry ice block machine JHK500V is producing a dry ice block with a dimension of 250 x 140 x 90 mm which is normally used for food transportation. It is also possible to produce other thicknesses up to 200 mm by manual adjustment of the snow injection time. Other block ice dimensions are available on request.
Unique Features
-
PLC - automatically controls the complete process, injection and hydraulic
-
Independent performance - very constant production, independent of pressure and temperature
-
Integrated production control system - definition and supervision of production quantity
-
High process reliability - optimized process monitoring provides optimal performance and increases process reliability
-
Easy maintenance - simple structure and easy replacement of spare parts makes maintenance work simple for even new users
-
Minimum floor space for high production performance
Specifications
|
Dry ice size |
250*140*(50-210)mm |
|
Production capacity |
400-500kgs/hr |
|
Dry ice density |
1.3 to 1.52 g/cm³ |
|
Raw materials |
liquid co2 in storage tank, water content is less than 30 ppm |
|
Conversion rate |
42% |
|
Motor Power |
11kw |
|
Oil Tank |
320L |
|
Power supply |
380v/50Hz, 3p |
|
Liquid co2 inlet pressure |
≤2.1MPA |
|
Liquid co2 inlet pipe |
Ф20 |
|
Co2 gas discharge pipe |
Ф65 |
|
Overall dimension |
1750*1300*2800mm |
|
Weight |
2100kg |
