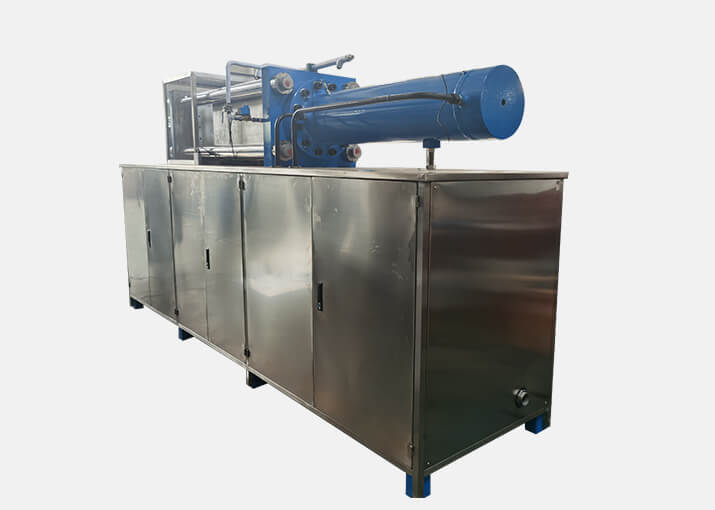

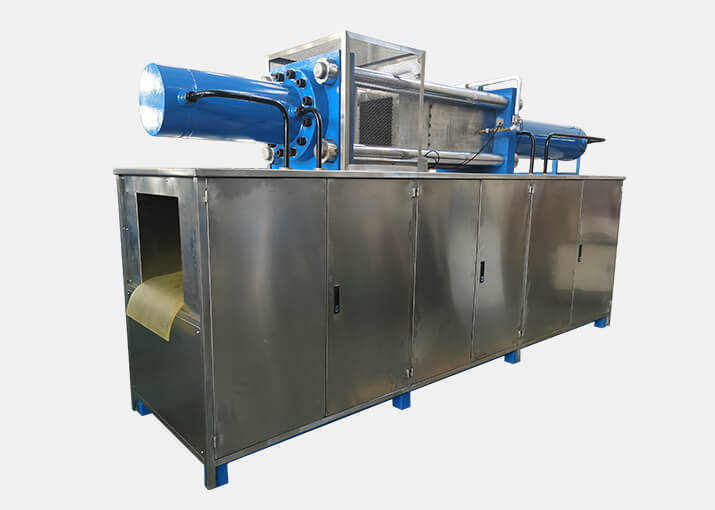

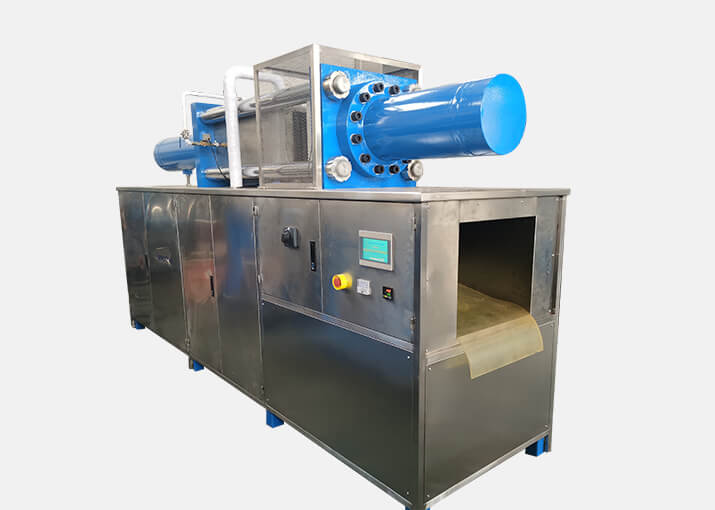

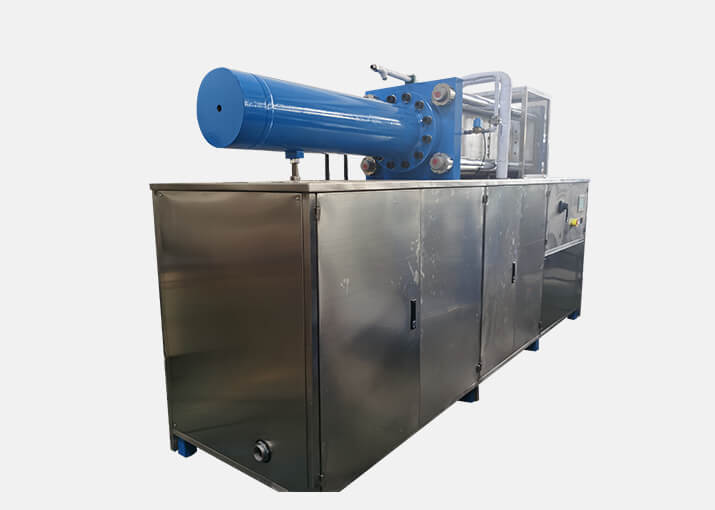

Dry Ice Block Machine JHK650
Our standard dry ice machine JHK650 is producing a block with a dimension of 300 x 255 x (50-260) mm which normal weighs 3kg-30kg. The ice blocks are mainly applied in cold chain, refrigeration storage, and dry ice cleaning industry (deburring). Other block ice dimensions are available on request.
Unique Features
-
PLC - automatically controls the complete process, injection and hydraulic
-
Independent performance - very constant production, independent of pressure and temperature
-
Integrated production control system - definition and supervision of production quantity
-
High process reliability - optimized process monitoring provides optimal performance and increases process reliability
-
Easy maintenance - simple structure and easy replacement of spare parts makes maintenance work simple for even new users
-
Minimum floor space for high production performance
Specifications
|
Dry ice size |
300*255*(50-260)mm |
|
Production capacity |
400-650 kgs/hr |
|
Dry ice density |
≥1.45 g/cm³ |
|
Raw materials |
liquid co2 in storage tank, water content is less than 30 ppm |
|
Conversion rate |
42% |
|
Motor Power |
13.5kw |
|
Oil Tank |
280L |
|
Power supply |
380V/50Hz, 3P |
|
Liquid co2 inlet pressure |
≤2.1MPA |
|
Liquid co2 inlet pipe |
Ф25 |
|
Exhaust pipe diameter |
Ф65 |
|
Overall dimension |
2900*1100*1900mm |
|
Weight |
2800kg |
