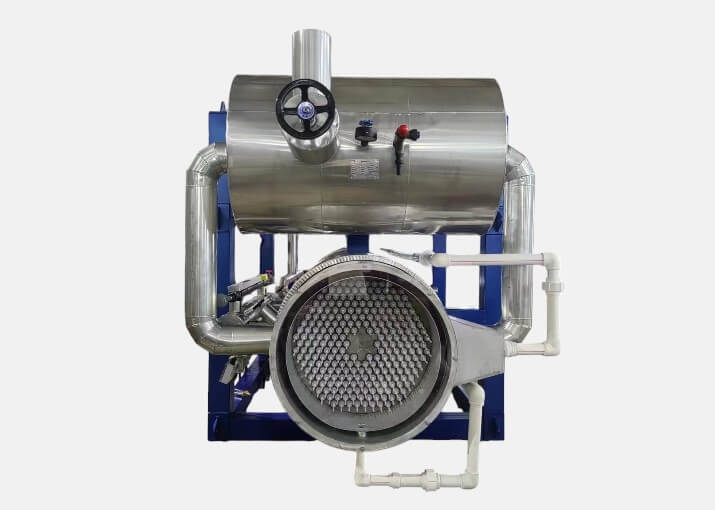

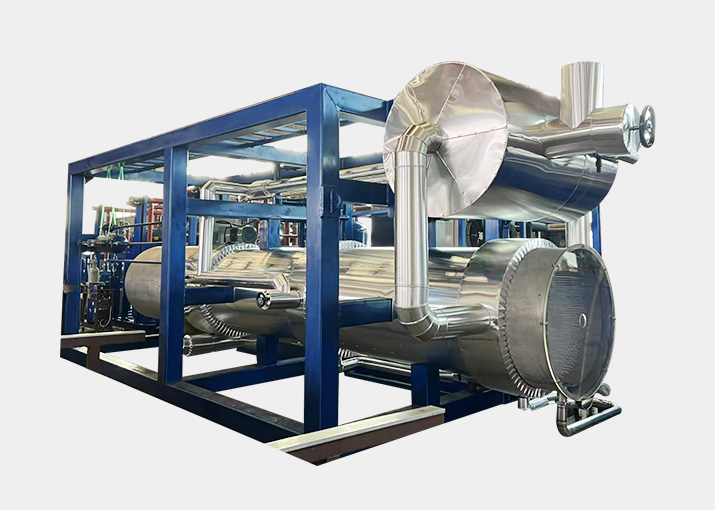

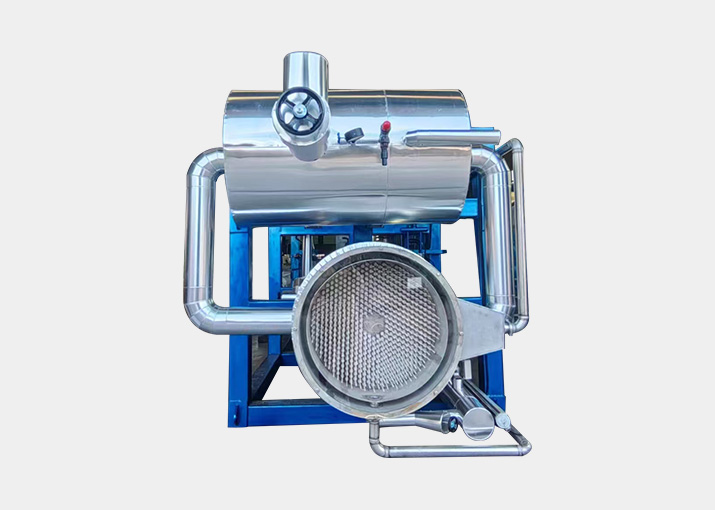

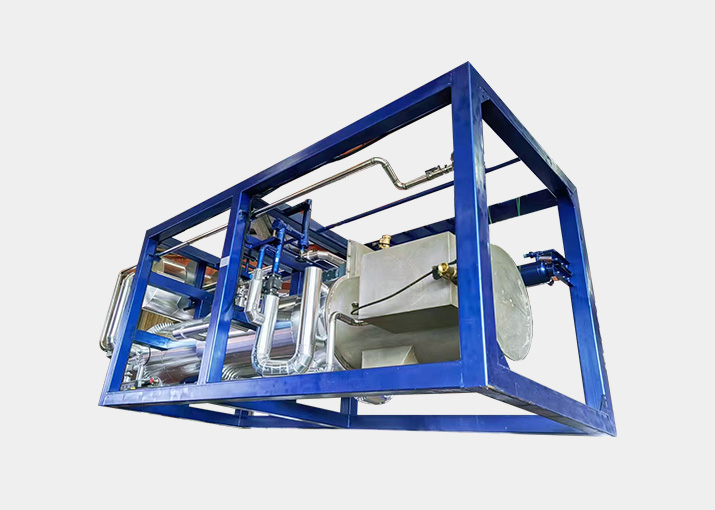

Ammonia Tube Ice Generator SNT-300E
SINOCEAN Ammonia Tube Ice Generator SNT-300E is a compact, energy-efficient ice-making solution that produces high-quality cylindrical ice tubes. It operates with ammonia refrigerant, ensuring reliable cooling and consistent performance for industrial needs such as seafood preservation, food processing, and cooling logistics. The SNT-300E is designed for durability, offering low maintenance and high productivity.
Specifications
|
NO |
ITEM |
SPECIFICATION |
|
|
1 |
capacity |
30 ton/day |
|
|
2 |
refrigerant |
R717（Ammonia） |
|
|
3 |
Environment condition |
Power supply |
220V/60Hz/3P |
|
Environment temp. |
35℃ |
||
|
Water inlet temp. |
23℃ |
||
|
Water inlet pressure |
2-4bar |
||
|
Inlet pipe Dia. |
1" |
||
|
Inlet water quantity |
1300kg/hr |
||
|
4 |
Refrigeration capacity required |
Condensing temp. |
38℃ |
|
Evaporating temp. |
-10℃ |
||
|
Rerfiegration capacity |
270kW |
||
|
5 |
parts |
Water pump |
included |
|
Ice cutter |
included |
||
|
Ice cutter reducer |
included |
||
|
Gas separator |
included |
||
|
Oil sump |
included |
||
|
Oil sump pressurization valve |
included |
||
|
Oil sump relief valve |
included |
||
|
Oil sump vent valve |
included |
||
|
Liquid level control |
included |
||
|
Ultra high level alarm |
included |
||
|
Safety valve |
included |
||
|
Suction line valve |
included |
||
|
Pressure gauge |
included |
||
|
Pressure controller |
included |
||
|
Liquid supply stop valve |
included |
||
|
Liquid supply solenoid valve |
included |
||
|
Supply throttle valve |
included |
||
|
Hot ammonia solenoid valve |
included |
||
|
Hot ammonia stop valve |
included |
||
|
service valve |
included |
||
|
electrical control system
|
included |
||
|
6 |
materials |
Steel frame |
Carbon steel spray paint |
|
Electric box |
Carbon steel plastic spray |
||
|
Tube ice generator shell pass |
Carbon steel, anti-rust paint, foam insulation 40mm |
||
|
Tube ice generator shell |
SUS304 |
||
|
Tube ice generator tube pass |
SUS304 |
||
|
Water pipe |
PVC |
||
|
Water tank |
SUS304 |
||
|
Supporting steel frame |
Spray paint |
||
|
8 |
Parts brand |
Water pump |
China |
|
Ice cutter |
China |
||
|
Oil sump |
China |
||
|
Gas separator |
China |
||
|
Solenoid valve |
China |
||
|
Throttle valve |
China |
||
|
Stop valve |
China |
||
|
Pressure controller |
Danfoss |
||
|
PLC |
Siemens |
||
|
Electrical component |
Schneider |
||
|
9 |
Energy efficiency |
Electricity consymption |
75kW/1 ton ice |
|
Water consumption |
110kg/100kg ice |
||
|
10 |
Size |
Tube ice generator |
L2400×W2200×H6075 mm |
|
11 |
Weight |
Tube ice generator |
7350kg |
