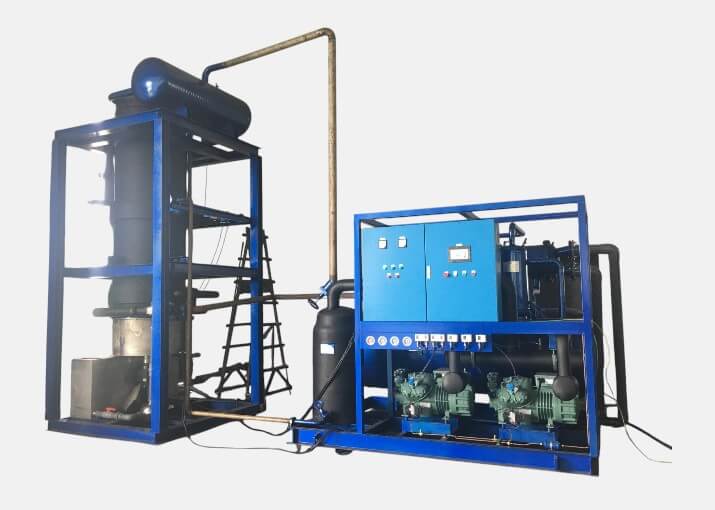

Large Capacity Tube Ice Machine SNT-250W
Large capacity tube ice machine, featuring a modular design with an evaporator, compressor, and cooling water module. It operates on an efficient intermittent cycle, with a typical cycle consisting of 22 minutes of ice making followed by 3 minutes of ice harvesting for ice tubes with an external diameter of 35mm. It with adjustable ice tube diameters for customized production. Crafted with SuS304 material, it boasts optimized heat exchange and superior heat conduction. Corrosion-resistant stainless steel ensures easy cleaning, while a sub cooler enhances energy efficiency. Rapid harvest and recovery are achieved through hot gas defrost, and self-diagnostic features provide ease of operation.
Key Features
-
Efficient Intermittent Cycle: Produces ice in 22-minute cycles, followed by 3-minute harvest periods for 35mm diameter tubes, ensuring continuous ice supply.
-
Customizable Ice Diameter: Adjusts internal tube diameter based on production time, catering to various ice size needs.
-
High-Performance Evaporator: SuS304 material with optimized thickness and heat treatment for superior heat conduction and ice formation.
-
Durable Stainless Steel: All contact surfaces are corrosion-resistant stainless steel, easy to clean and maintain.
-
Energy-Saving Sub Cooler: Incorporates a sub cooler for enhanced energy efficiency and higher C.O.P., reducing operational costs.
-
Fast Defrost System: Hot gas defrost technology for rapid ice harvest and quick machine recovery, maximizing uptime.
-
Intuitive Controls: Features self-diagnostic lights and electronic temperature controls for easy operation and monitoring.
Specifications
|
Model No. |
SNT-250W |
|
Power supply |
380V/3P/50Hz |
|
Refrigerant |
R22/R404A |
|
Capacity |
25MT/day |
|
Cooling Way |
water-cooling |
|
Ambient temperature |
35ºC |
|
Inlet water temperature |
25ºC |
|
Total running power |
75KW |
|
Installment power |
100KW |
|
Compressor Net weight |
2690KG |
|
Compressor Dimension |
3000×2200×2500 (L×W×H)(mm) |
|
Evaporator Net weight |
2750kg |
|
Evaporator Dimension |
2000×1800×5575 (L×W×H)(mm) |
|
cooling tower Weight |
1120KG |
|
cooling tower Size |
∅2175x2565 (O.D.x H) (mm) |
