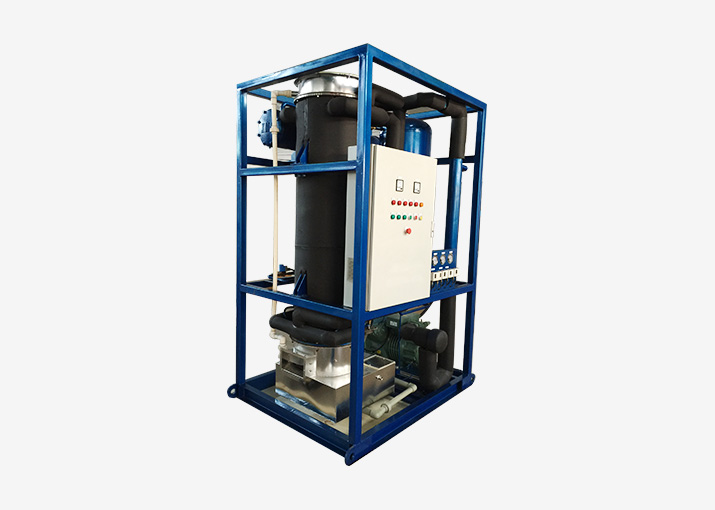

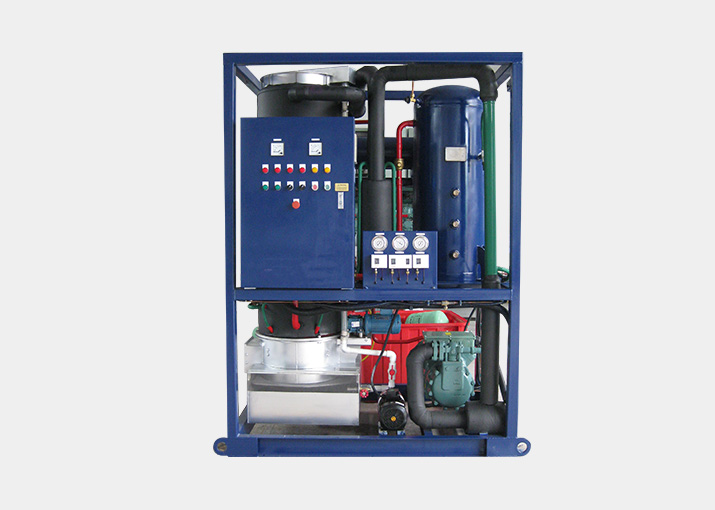

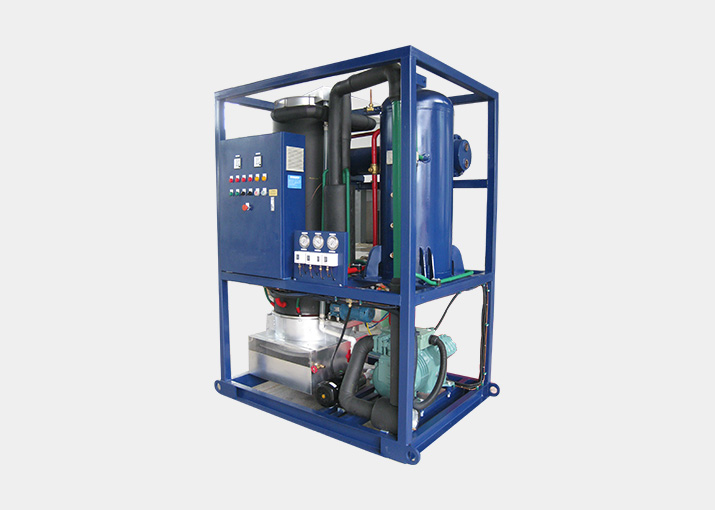

Small Capacity Tube Ice Machine SNT-50W
Small capacity tube ice machine features a compact, integral design with all components pre-assembled in a steel frame, except for the cooling tower or air fan. It is easy to ship, move, and install, requiring only connections to electricity and water for operation. The machine operates in cycles, producing ice every 22 minutes and harvesting every 3 minutes. Its stainless steel evaporator and cutters ensure durability and corrosion resistance, while adjustable ice tube diameter offers versatility. Equipped with energy-efficient technology, a sub cooler, hot gas defrost, and self-diagnostic controls, this machine delivers optimal performance and easy maintenance.
Key Features
-
Efficient Intermittent Cycle: Produces ice in 22-minute cycles, followed by 3-minute harvest periods for 35mm diameter tubes, ensuring continuous ice supply.
-
Customizable Ice Diameter: Adjusts internal tube diameter based on production time, catering to various ice size needs.
-
High-Performance Evaporator: SuS304 material with optimized thickness and heat treatment for superior heat conduction and ice formation.
-
Durable Stainless Steel: All contact surfaces are corrosion-resistant stainless steel, easy to clean and maintain.
-
Energy-Saving Sub Cooler: Incorporates a sub cooler for enhanced energy efficiency and higher C.O.P., reducing operational costs.
-
Fast Defrost System: Hot gas defrost technology for rapid ice harvest and quick machine recovery, maximizing uptime.
-
Intuitive Controls: Features self-diagnostic lights and electronic temperature controls for easy operation and monitoring.
Specifications
| Model No.: | SNT-50W |
| Power supply: | 380V/3P/50Hz |
| Refrigerant: | R22/R404A |
| Capacity: | 5000kg/day |
| Cooling Way: | water-cooling |
| Ambient temperature: | 35ºC |
| Inlet water temperature: | 25ºC |
| Total running power: | 14KW |
| Installment power: | 20KW |
| Net weight: | 1560KG |
| Dimension: | 1600×1200×2180 (L×W×H)(mm) |
