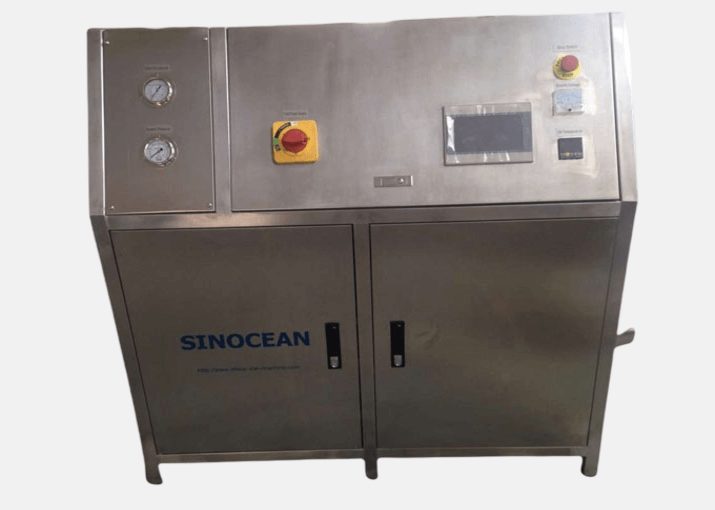

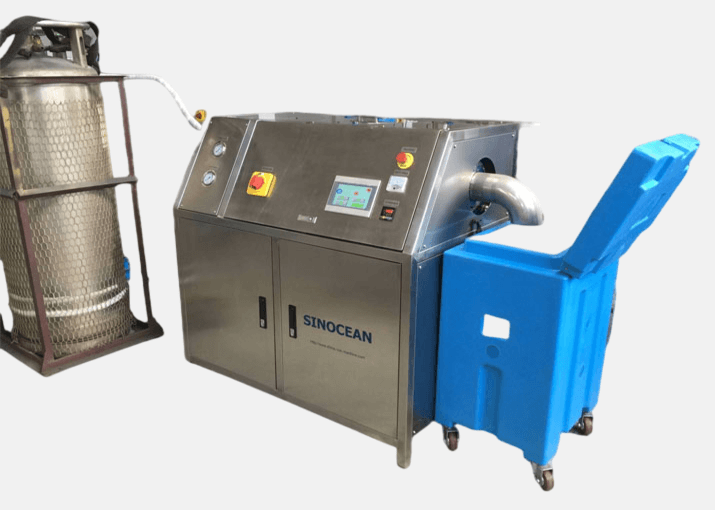

Dry Ice Pelletizer JH60
Revolutionize your dry ice production with our cutting-edge Dry Ice Pelletizer, delivering up to 60kg of high-density pellets per hour. Powered by CO₂ and electricity, this compact, fully automated machine offers effortless push-button operation. With its advanced hydraulic system and precise temperature control, it ensures uninterrupted, high-efficiency production—no supervision required. Fast, reliable, and always ready to perform.
Unique Features
-
PLC -automatically controls the complete process, injection and hydraulic
-
Independent performance - very constant production, independent of pressure and temperature
-
Integrated production control system - definition and supervision of production quantity
-
High process reliability - optimized process monitoring provides optimal performance and increases process reliability
-
Easy maintenance - simple structure and easy replacement of spare parts makes maintenance work simple for even new users
-
Minimum floor space for high production performance
Specifications
|

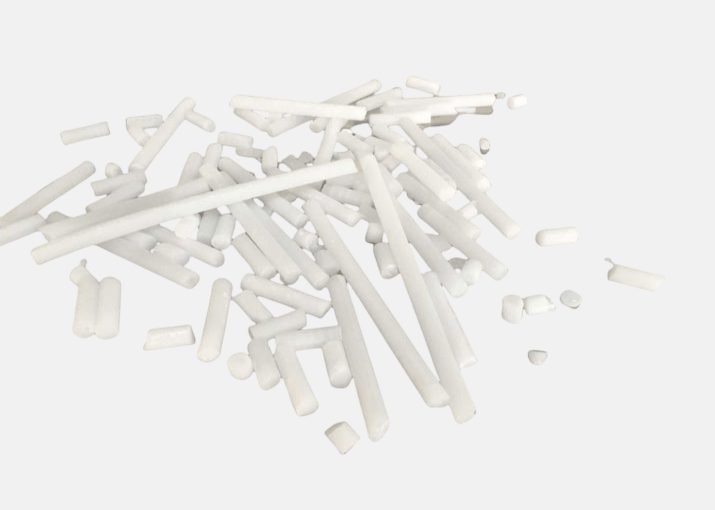

Dry ice size |
Ф3mm,16mm |
|
Production capacity |
60kgs/hr |
|
Dry ice density |
≥1.50 g/cm³ |
|
Raw materials |
liquid co2 in storage tank, water content is less than 30ppm |
|
Conversion rate |
40% |
|
Motor Power |
3.7 kw |
|
Oil Tank |
90L |
|
Power supply |
380v/50Hz, 10A |
|
Liquid co2 inlet pressure |
≤2.1MPA |
|
Liquid co2 inlet pipe |
Ф10mm |
|
Co2 gas discharge pipe |
Ф50mm |
|
Overall dimension |
600*800*1300mm |
|
Weight |
600kg |
