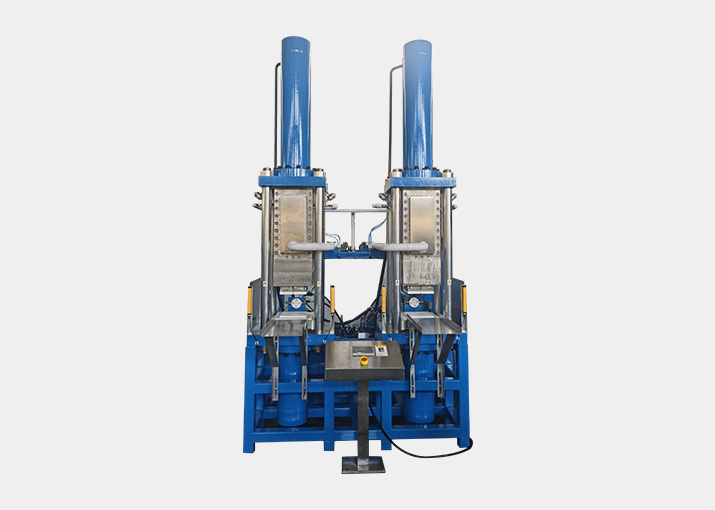

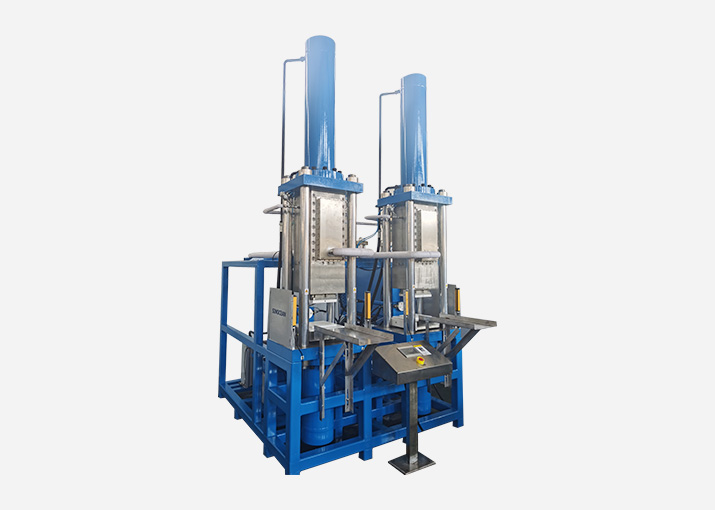

Dry Ice Block Machine JHK1300V
Our standard dry ice block press machine JHK1300V is producing a dry ice block with a dimension of 300 x 300 x (50-260) mm which normal weighs 6kg-38kg. The dry ice blocks are mainly applied in cold chain, refrigeration storage, and dry ice cleaning industry (deburring). Other block ice dimensions are available on request.
Unique Features
-
PLC - automatically controls the complete process, injection and hydraulic
-
Independent performance - very constant production, independent of pressure and temperature
-
Integrated production control system - definition and supervision of production quantity
-
High process reliability - optimized process monitoring provides optimal performance and increases process reliability
-
Easy maintenance - simple structure and easy replacement of spare parts makes maintenance work simple for even new users
-
Minimum floor space for high production performance
Specifications
| Dry ice size: | 300*300*(50-280)mm |
| Production capacity: | 1500-2000 kgs/hr |
| Dry ice density: | 1.3 to 1.52 g/cm³ |
| Raw materials: | liquid co2 in storage tank, water content is less than 30 ppm |
| Conversion rate: | 42% |
| Motor Power: | 18.5 kw |
| Oil Tank: | 400L |
| Power supply: | 380V/50Hz, 3P |
| Liquid co2 inlet pressure: | ≤2.1MPA |
| Liquid co2 inlet pipe: | Ф25 |
| Exhaust pipe diameter: | 4*Ф65 |
| Overall dimension: | 2400*2200*4200mm |
| Weight: | 8500kg |
