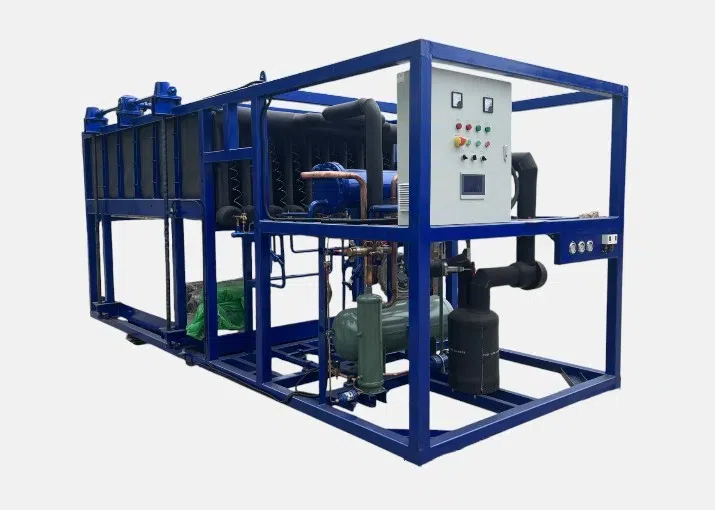

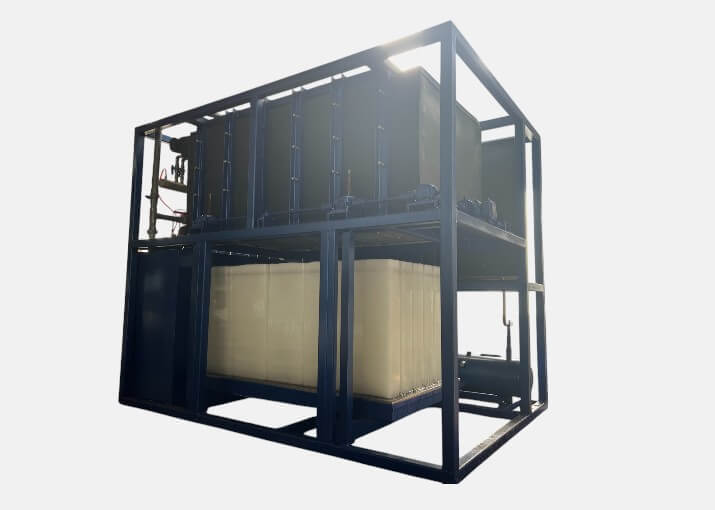

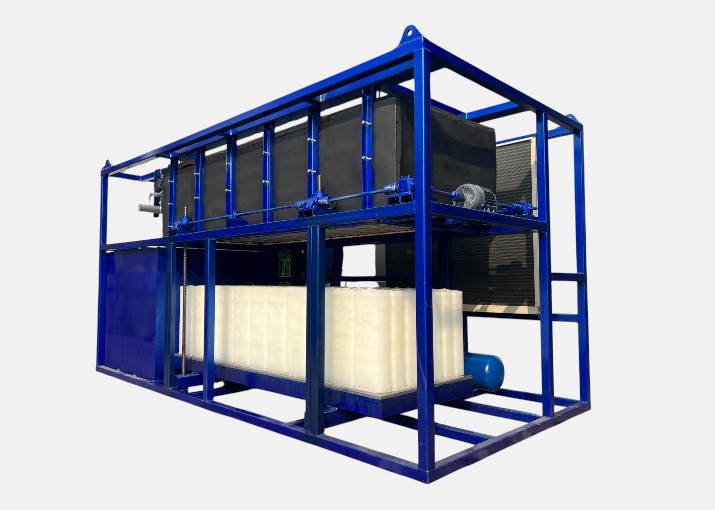

Direct Cooling Block Ice Machine SNB-50
Our Block Ice Maker utilizes the latest technology to provide efficient and reliable ice production without the need for a saltwater tank. Built with a 6063-T5 aerospace-grade aluminum alloy evaporator, it features high heat transfer efficiency, durability, and enhanced performance. The direct heat exchange between water and refrigerant allows the machine to produce ice 1.5 times faster than traditional saltwater systems. this machine is ideal for large-scale ice production in commercial and industrial settings.
Key Features
-
Latest Technology, No Saltwater Tank Required: Simplifies system design and operation, eliminating the need for a saltwater tank.
-
Aerospace-Grade Aluminum Alloy (6063-T5): High heat transfer, strength, and durable evaporator with advanced welding.
-
Direct Heat Exchange: Direct heat exchange in aluminum evaporator boosts ice-making efficiency, producing ice 1.5x faster.
-
Screw Rod Lifting Mechanism: Screw rod lifting with sensor feedback for precise, safe, smooth operation.
-
Passive Reservoir Control: Ensures precise liquid supply, increasing ice-making efficiency and overall system reliability.
-
Automatic Water Addition Function: Back-type liquid level control technology automatically adds water, ensuring consistent operation.
-
Silicone Foam Seal: Prevents evaporator leakage, ensuring efficient and clean ice production.
-
Unique Ice Making System: Hot gas defrost technology simplifies automatic ice harvesting for reliability and convenience.
-
Integrated Modular Design: Facilitates easy installation and maintenance on-site for greater convenience.
Specifications
|
Daily capacity |
5000kg/24hr |
|
Power supply |
380V/50Hz/3P |
|
Block ice size |
340mm*125mm*600mm |
|
Block ice weight |
20kg |
|
Block ice making design |
20kg*88pieces*3times=5280kg/24hr |
|
Cooling way |
Air cooling |
|
Power |
30KW |
|
Dimension |
4950mm*2122mm*2250mm |
|
Operating Weight |
3900KG |
