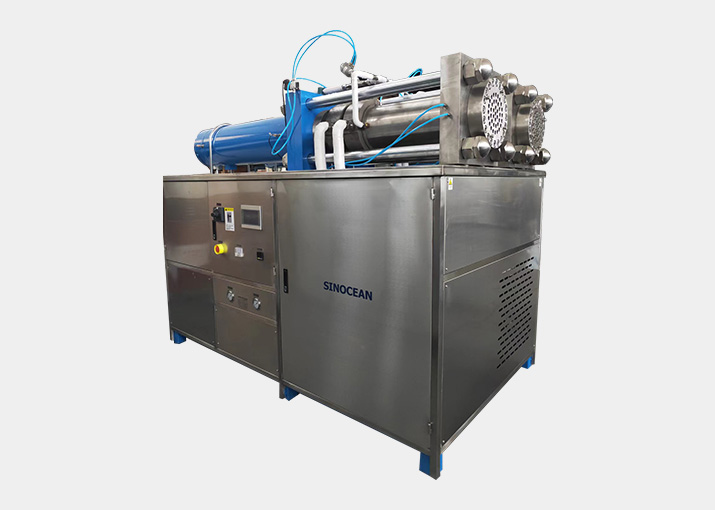

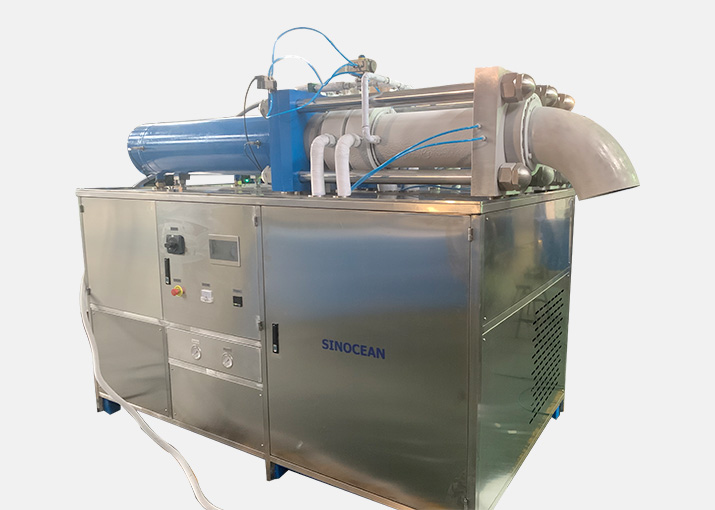

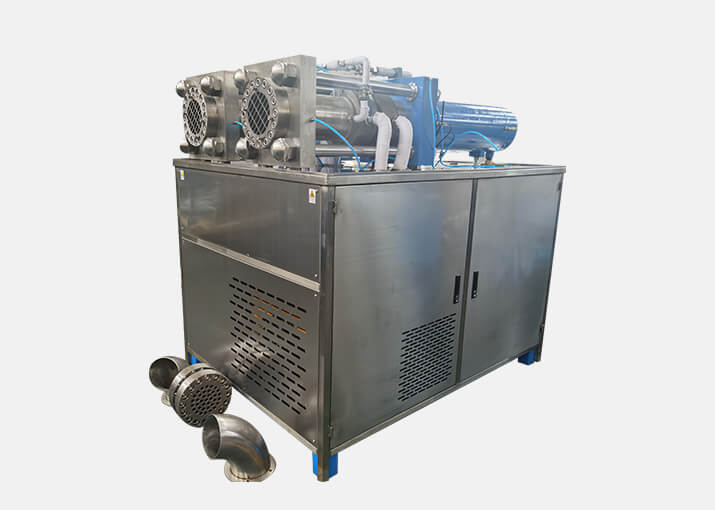

Dry Ice Pelletizer JH1000
The Dry Ice Pelletizer offers automatic production capability of up to 1000 kg per hour of consistent, high-density dry ice pellets using Liquid CO₂ and electrical power. Compact and reliable dry ice making machine puts dry ice production in your hands. The dry ice pelletizer is driven by a powerful hydraulic unit featuring instant push button start. Fully automatic control of oil temperature and dry ice snowing process guarantees continuous dry ice production without any supervision right from push button start. .
Unique Features
-
PLC - automatically controls the complete process, injection and hydraulic
-
Independent performance - very constant production, independent of pressure and temperature
-
Integrated production control system - definition and supervision of production quantity
-
High process reliability - optimized process monitoring provides optimal performance and increases process reliability
-
Easy maintenance - simple structure and easy replacement of spare parts makes maintenance work simple for even new users
-
Minimum floor space for high production performance
Specifications
| Dry ice size: | Φ3mm, Φ16mm |
| Production capacity: | 1000 kgs/hr |
| Dry ice density: | ≧1.50 g/cm³ |
| Raw materials: | liquid co2 in storage tank, water content is less than 30 ppm |
| Conversion rate: | 45% |
| Motor Power: | 22kw |
| Oil Tank: | 350L |
| Power supply: | 380v/50Hz, 3p |
| Liquid co2 inlet pressure: | ≤2.1MPA |
| Liquid co2 inlet diameter: | Ф25 |
| Exhaust pipe diameter: | 2* Ф80 |
| Overall dimension: | 2100*1500*1850mm |
| Weight: | 2400kg |
